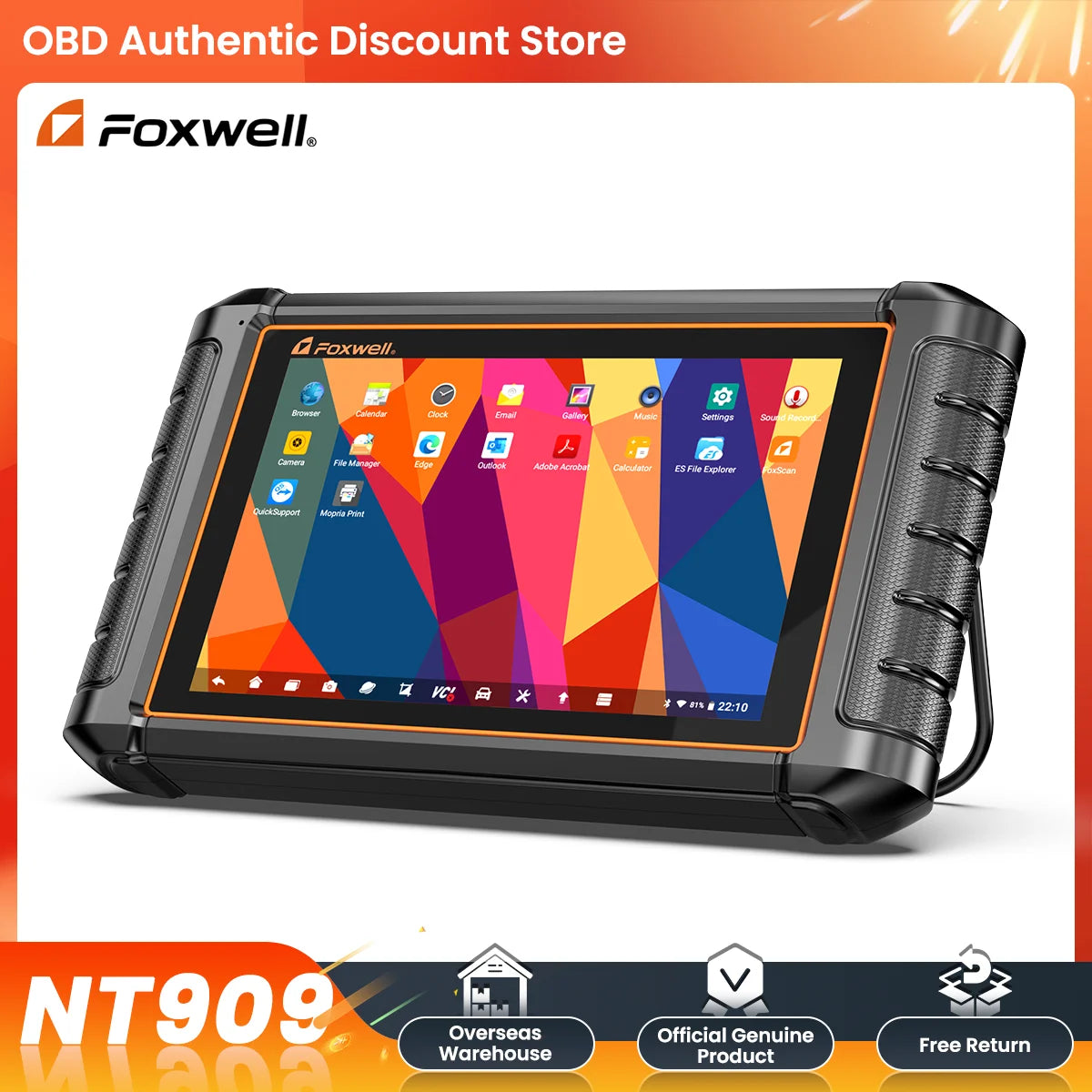

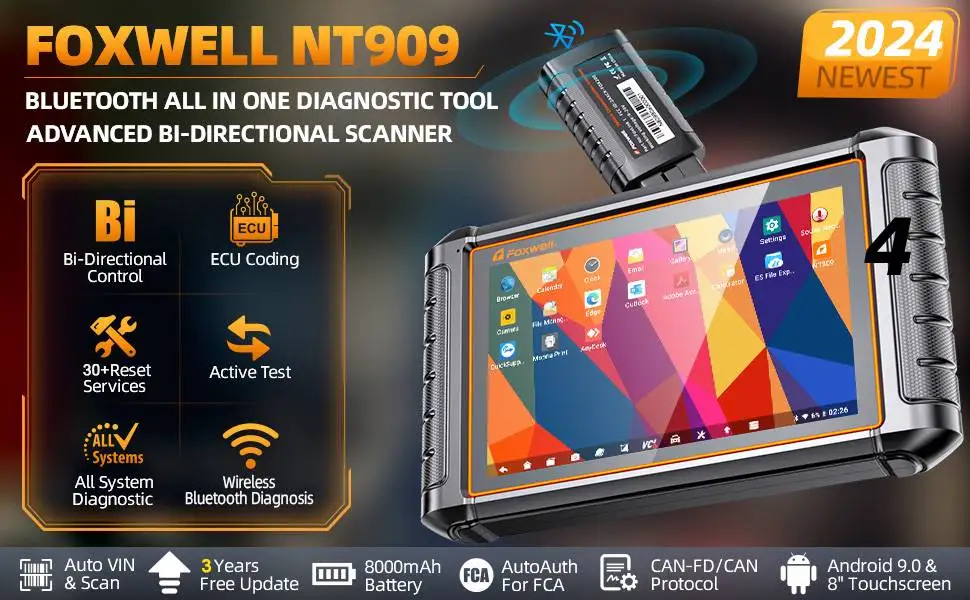

FOXWELL NT909 OBD2 Bidirectional Scan Tool ECU Coding All System Car Diagnostic Tools CANFD AutoAuth OBD2 Automotive Scanner

The FOXWELL NT909 is a professional-grade OBD2 bidirectional scan tool designed for comprehensive vehicle diagnostics. It supports ECU coding and covers all systems, enabling precise troubleshooting and advanced vehicle programming. Equipped with CANFD and AutoAuth technology, this automotive scanner ensures fast, reliable communication with modern vehicles. Ideal for expert technicians, it delivers in-depth data and control for efficient diagnostics and maintenance.

NEW ARRIVAL == FOXWELL NT909, 3 YEARS FREE UPDATE!

【 New Version, Functions Same as Foxwell GT65】: Foxwell NT909 new added more OE-Level Functions, Guided Functions , Component Matching, Flash Hidden Functions, Actuator Test.

【Bi-directional Control + ALL System Diagnosis】: Foxwell NT909 automotive scanner can actuate solenoids and actuators for active testing, send commands to many systems/components to test their working status, without using the vehicle controls. and access to ALL vehicle systems and subsystems, covers Body, Chassis, Powertrain, Fuel system, Light system,and etc,.

【Best Hardware & 30+ Reset Functions】

✅Android 9.0 System
✅ 8 inch touchscreen
✅32GB SD Card(extent to 64GB)
✅front &rear cameras
✅Auto VIN
✅One-Click Update,NO IP Limited!

✅generate/print/share Vehicle Health Report
✅Remote Diagnosis
✅Data Stream record and playback

✅Maintenance Help.
✅ECU Coding,ABS Bleed, SAS/TPMS/D-P-F/Reset and etc,.functions are all-round, reliable, powerful, running super fast, time-saving and cost-effective for a professional mechanics.

【Wider Vehicle Coverage for Repairing Shops & Diyers】: Foxwell NT909 automotive scanner reads & erases codes, view live data, retrieve ECU version information.Full range car models and full car system diagnose make it a professional automotive diagnostic tool. ✅Being the economical version of Foxwell GT65 which equipped with full connectors, NT909 gives you cost-effective alternative.

Coding and Programming

NT909 allows for the coding and programming of a replacement control module or changing previously stored incorrect coding.

Coding also is known as Teach-in Program or Component Adaptation. It is the process of selecting and activating one program for a specific vehicle from a set of programs that the factory installed in the control module. This allows one control module to be used for different models, countries, and emission applications.

Programming is the process of taking a blank control module and then adding the correct vehicle program to memory.

📃For example:
For BMW F Chassis ECU Coding & hidden Function

For Audi Guide Function & Hidden Function

For VW ECU Coding & Guide Function & Hidden Function

For Ford Programming

For Toyota Hidden Function

and many more……

Bi-Directional / Active test

Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and component.
The tests let you to use the scanner temporarily activate or control a vehicle system or component, and when you exit the test, the system/component returns to normal operation. Some tests display a command to the operator.

For example, if “Press Brake Pedal” displays, the operator has to press and hold the brake pedal and then continue. The sequence, number and type of tests are dictated by the control module.

On some systems, the actuator tests cannot be restarted until the ignition key is switched off for some time. Alternatively, briefly start and run the engine,shut down, turn the ignition to the run position, then re-initiate the actuator tests.

Active Test can be employed on headlamps, windscreen wipers, windows & doors, and sunroof such as
●Turn On The Radiator Fan
●Open/ Close Windows/ Door
●Operate Mirrors
●EVAP Test/ Fuel Pump/ Fuel Injector Test
●Cycling a/c
●Clutch On/Off
●Turn On/Off The Sound Horn
●Active Grille Shutter
●Fuel Heater On/Off
●Modulate The Throttle
●Turn On/Off The light
……
NOTE: All above are probably not available for some specific car models.

ALL Systems Diagnoses (Faster and more effective than OE-level coverage diagnostic equipment）

FOXWELL NT909 can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Support over 10000 models , Full range car models and full car system diagnose make itaprofessional automotive diagnostic tool.

Full System Diagnostic Including :
ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, ect...

Diagnosis functions include:
Read control unit information, Read DTCs, Clear DTCs, Read datastream, Read frozen frame and More ...

Foxwell NT909 Support 30+ Maintenance Service!

●ABS Bleeding: When the ABS contains air, ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

●Oil Light Reset: This function is required when you are alerted that your vehicle is due for a service. It allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.

●EPB: This function is required for the maintenance of the electronic braking system's safety and efficiency.

●TPS: also called TBA, throttle body alignment. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

●TPMS: Tire Pressure Monitoring System Programming. The service allows you to check the tire sensor IDs from the vehicle ECU and to perform TPMS programming and reset after tires and/or TPM sensors are replaced and/or tires are rotated.

●BRT: The function lets you validate new batteries, clear faults from the dashboard and display current battery details of the vehicle.

●D-P-F: This function especially works for the Diesel Particulate Filter system with DPF regeneration, letting you perform the D-P-F cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a D-P-F regeneration cycle is completed, the DPF light automatically goes off.

●Injector Coding: Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

●SAS: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

●CVT: Continuous Variable Transmission, this function is used to reset the compensation code and initialize the ECT after a solenoid valve or valve body assembly has been replaced.

●Gear Learning: The crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the computer to more accurately diagnose engine misfires.After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'tooth not learned' is present, tooth learning must be performed.

●Fuel pump priming:During fuel system service, if changing a fuel filter or when the system is opened, the air is introduced into the system. This can cause hard to start issues. The Fuel pump prime command allows to pump to be run to bleed the system.

●A/F adaptation: command allows the ECU to relearn these values to meet the Ideal air-fuel ratios after service, to ensure the best engine performance.

●Clutch adaptation: Importance of a clutch pedal correct -play. Anything less than the correct amount of correct play (or clearance) will result in clutch slip, because the pressure plate will be unable to exert its full pressure on the friction plate, clutch linkage adjustment to compensate for clutch wear.

Seat Match
Language Change
Windowsdoor
Turbo
Headlamp
Transmission_Adaption
Tcmoil
Airbag Reset
EVAP Test
Change Tire Size

Note: Reset functions are not universal for all vehicles. Please inquiry us with car model, release year, and VIN number to check compatibility before purchase.

Wider Global Vehicle Coverage

CAN-FD/CAN/KPM/DOIP Protocol supports for GM vehicles manufactured after 2020.
Support FCA Autoauth(Need a extra12+8 adapter) unlock the protected FCA vehicle SGW module for Chrysler, for Dodge, for Jeep, for Alfa Romeo, and for Fiat vehicles manufactured after 2018.

🚘American Coverage:
For Chrysler, For Ford, For GM, For GMBRAZIL, For FiatBRAZIL (For Brazilian Market Only)

🚘Asian Coverage:
For Acura, For Daewoo, For Daihatsu, For Fuso, For Hino, For Honda, For Hyundai, For Hyundaicv, For Infiniti, For Isuzu, For Isuzu Truck, For Kia, For Lexus, For Mahindra, For Maruti, For Mazda, For Mitsubishi, For Nissan, For Perodua, For Proton, For Scion, For Ssangyong, For Subaru, For TATA, For Suzuki, For Toyota, For Gtr Fordau, For Mahindra, For TATA(For India Market Only)

🚘European Coverage:
For Abarth, For Alfa, For Astonmartin, For Audi, For Bentley, For Benz, For Bmw, For Bugatti, For Citroen, For Dacia, For Ferrari, For Fiat, For Fordeu, For Jaguar, For Lamborghini, For Lancia, For Landrover, For Maserati, For Maybach, For Mini, For Opel, For Peugeot, For Porsche, For Renault, For Rolls-Royce, For Saab, For Samsung, For Seat, For Skoda, For Smart, For Sprinter, For Vauxhall, For Volvo, For Vw, For Vw_Cv

🚘Chinese Coverage:
For Baichuansu, For Baicmotor, For Baicsenova, For Baicweiwang, For Bjev, For Bjhyundai, For Brilbmw, For Brilliance, For Byd, For Changan, For Changheauto, For Changhesuzuki, For Chery, For Chery_Ne, For Citroen_China, For Cmc, For Dffg, For Dfhonda, For Dfnissan, For Dfvenucia, For Dfxk, For Dorcen, For Dyk, For Emgrand, For Englon, For Fawdaihatsu, For Fordchina, For Foton, For Geely, For Gleagle, For Greatwall, For Gtr, For Gzhonda, For Hafei, For Haima, For Hino, For Ivecold, For Jac, For Jiangling, For Karry, For Landwind, For Lifan, For Luxgen, For Maple, For Mazdachina, For Peugeot_China, For Rely, For Riich, For Roewe, For Saicmaxus, For Saicmg, For Sgmw, For Soueast, For Tjfaw, For Zot.

Outstanding design and configuration!

👍8000mAh Lithium-polymer battery, work for nearly 15 hours continuous use on a single charge.

👍Top Quality Tablet, 8inch color scren, and 2GB+32GB memory, not only for work, and also entertainment.

👍5 Years Warranty, lifetime Technical Support, purchase it without worry.

👍Faster update frequency, we will add more models and function with upgrade, of course, you can submit your needs.

👍Wireless Printing Function Allows you print Diagnosis Reset ans Get Instand Feedback

Support Languages

📢The device only can install 2 languages , one is English , the other one you can choose from the following :

Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian，Hungarian, Slovak, Greek, Chinese, Traditional Chinese

English is Default Language, if you need other language, please send me the SN Number when you receive it (please register account and activation the sn number first), I will help you change it.

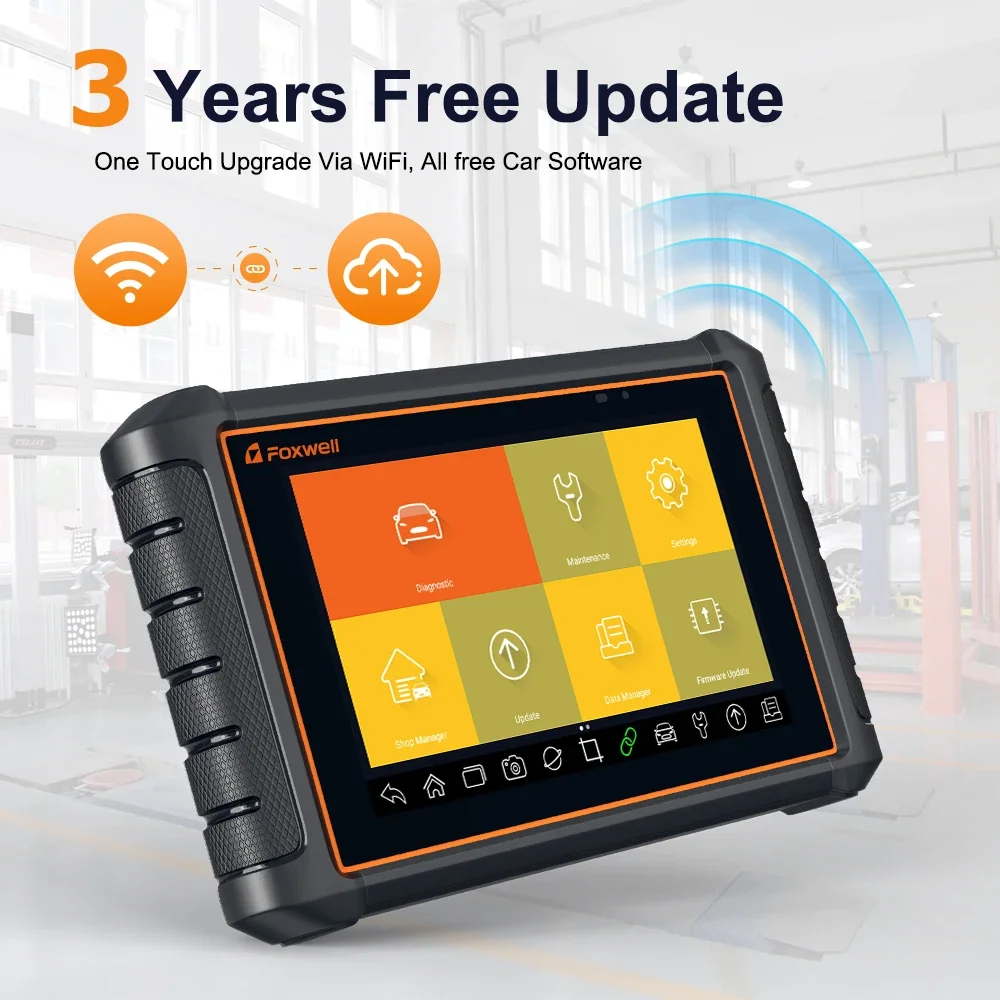

One Touch Update via WiFi, 2 Years Free Update Online

With WiFi access， you will always have the latest bug fixes, newly added parameters and functionality at your fingertips. It makes the scanner keep the latest system status at all times.

Vehicle Identification

● VIN Reading
● Manual Selection
● History Records

VIN Reading includes Automatic Read, Scan VIN and Manual Entry, eliminating the need for navigating through complicated car identification process.

Manual Selection: Select vehicle brand you are to test, and two ways of getting to the diagnostic operations are available.
● Smart VIN
● Manual Selection

Vehicle History: Vehicle History keeps records of tested vehicles and allows restarting the diagnosis of a vehicle without the need to do vehicle identification again.

Establishing Vehicle Communication

The VCI dongle supports two ways of communication with the NT909 tablet:
● Bluetooth Communication
● USB Communication

How to Update:

To update the diagnostic application:
1. Press Update from home screen or press update shortcut at the tool bar, and the update client starts up automatically.

2. The available updates display. Click the check box(s) in front of the software you wish to update and then click the Update button to download.

3. When all the items are updated, an “Update Done” message displays

Remote Support

Remote Control enables you to get remote support from Foxwell with TeamViewer when you have issues with Foxwell products.

If you need our team to remote control your NT909,

1. Click the Remote Control icon on the main menu of the NT909 to start TeamViewer.

2. Press Quick Support icon and the TeamViewer ID will show.

3. Send your ID to us to let our team to take control your tablet.

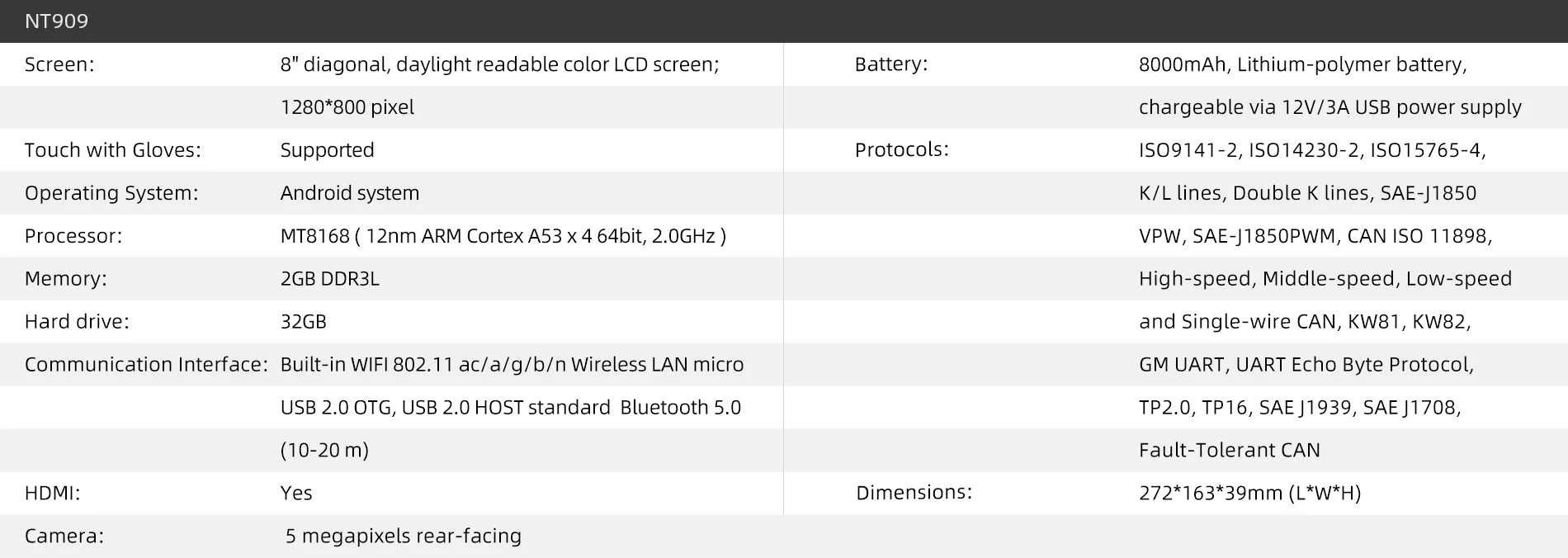

Technical Specifications

Touch Screen: 8" diagonal, daylight readable color LCD screen, 1280*800 pixel

Operation System: Android 9.0

Processor: MT8168 ( 12nm ARM Cortex A53 x 4 64bit, 2.0GHz )

Memory: LPDDR4 2GB

SSD Hard drive: 32GB

System Type: 32-bit operating Systems, x64-based processor

Display: Backlit 1280*800 pixel 8” LED capacitive touch screen

Communication interface:
Built-in WIFI IEEE 802.11 ac/a/g/b/n
USB 2.0 OTG/standard USB 2.0 HOST
Bluetooth 5.0 (10-20 m)

Camera: Camera 5 megapixels rear-facing

Built-in Battery: 8000mAh, Lithium-polymer battery, chargeable via 12V/3A USB power supply

Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Lows-peed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708, Fault-Tolerant CAN

Dimensions: 272*163*39mm (L*W*H)

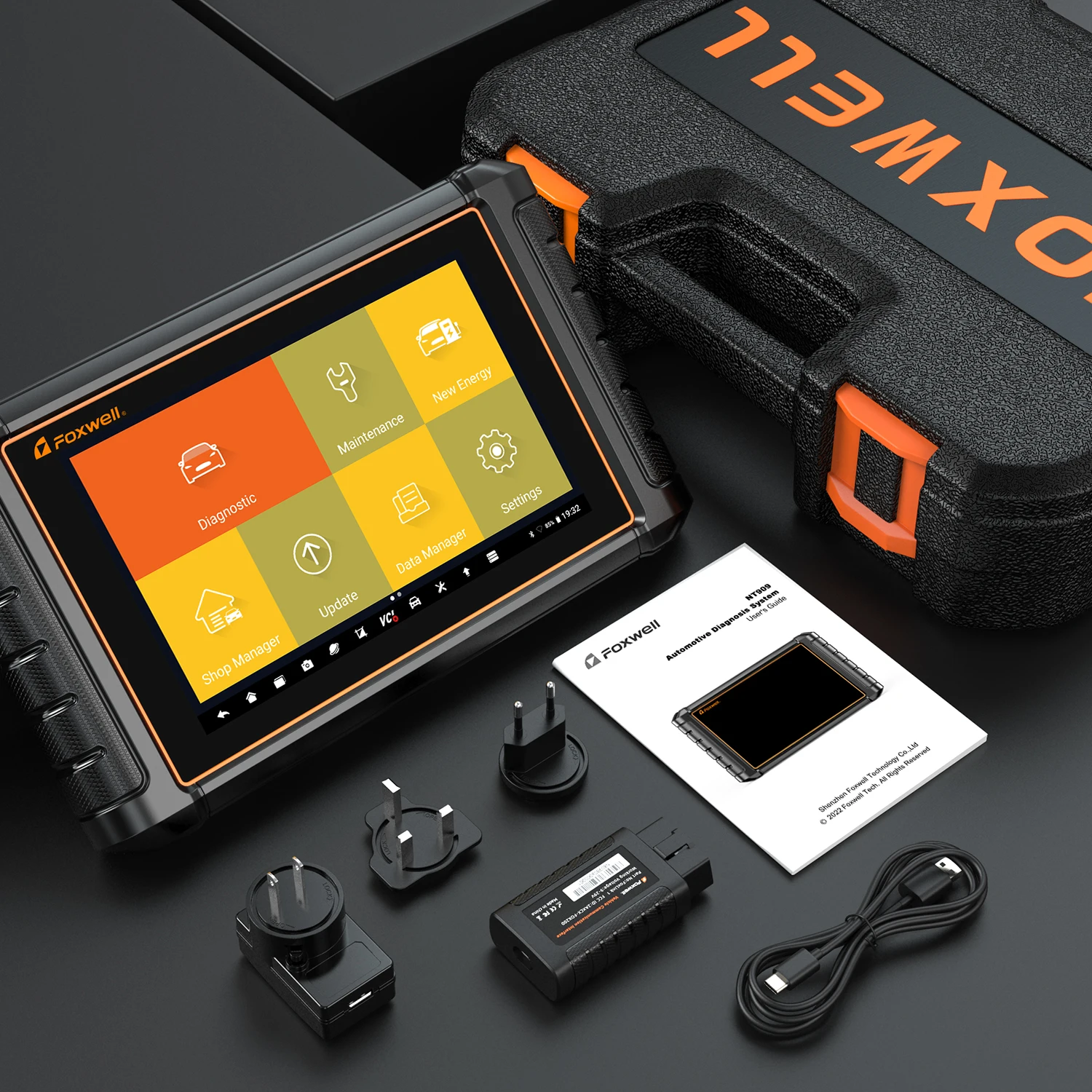

Package List:

1 set* NT909 main unit
1 pcs* VCI dongle
1 pcs* USB cable for VCI
1 pcs* USB type C cable
1 pcs* USB charging adpater
1 pcs* User maunal
